鉛管、鉛護套 生產線 YQL-150/5連續擠鉛機 YQL-150/5 lead sheathing extruder 本機用于電纜包復鉛護層和橡膠管包鉛硫化。 本設備由以下部分組成：鉛錠輸送輥道及起吊裝置、鉛片輸送機、18噸熔鉛爐、10噸凈化保溫爐、擠鉛機、立式剝鉛機、行走式放線架、行走式收排線架、電控裝置以及1號模座或2號模座。 YQL-150/5型連續擠鉛機有許多優點：結構緊密、擠包鉛管厚度均勻、鉛加工過程采用密閉系統，擠鉛過程中各部位的溫度和擠出壓力恒定，可大大節省用鉛量。 This YQL-150/5 machine is designed to continuously sheath the lead cover on the electric cable and also for the use of vulcanizing rubber pipe. It consisrs of lead ingot roller conveyer and loading device, lead flake conveyer, 18 ton lead melting furnace,10 ton purification maintaining furnace, lead extruder, lead stripping machine, travelling pay-off stand, travelling take-up stand and electrical equipment, No.1 die holder or No.2 die holder, It has the good advantages with compact construction, equithickness of extruded lead pipe, closed lead proceeding system, constant temperature and pressure for lead extruding, lead material saving.

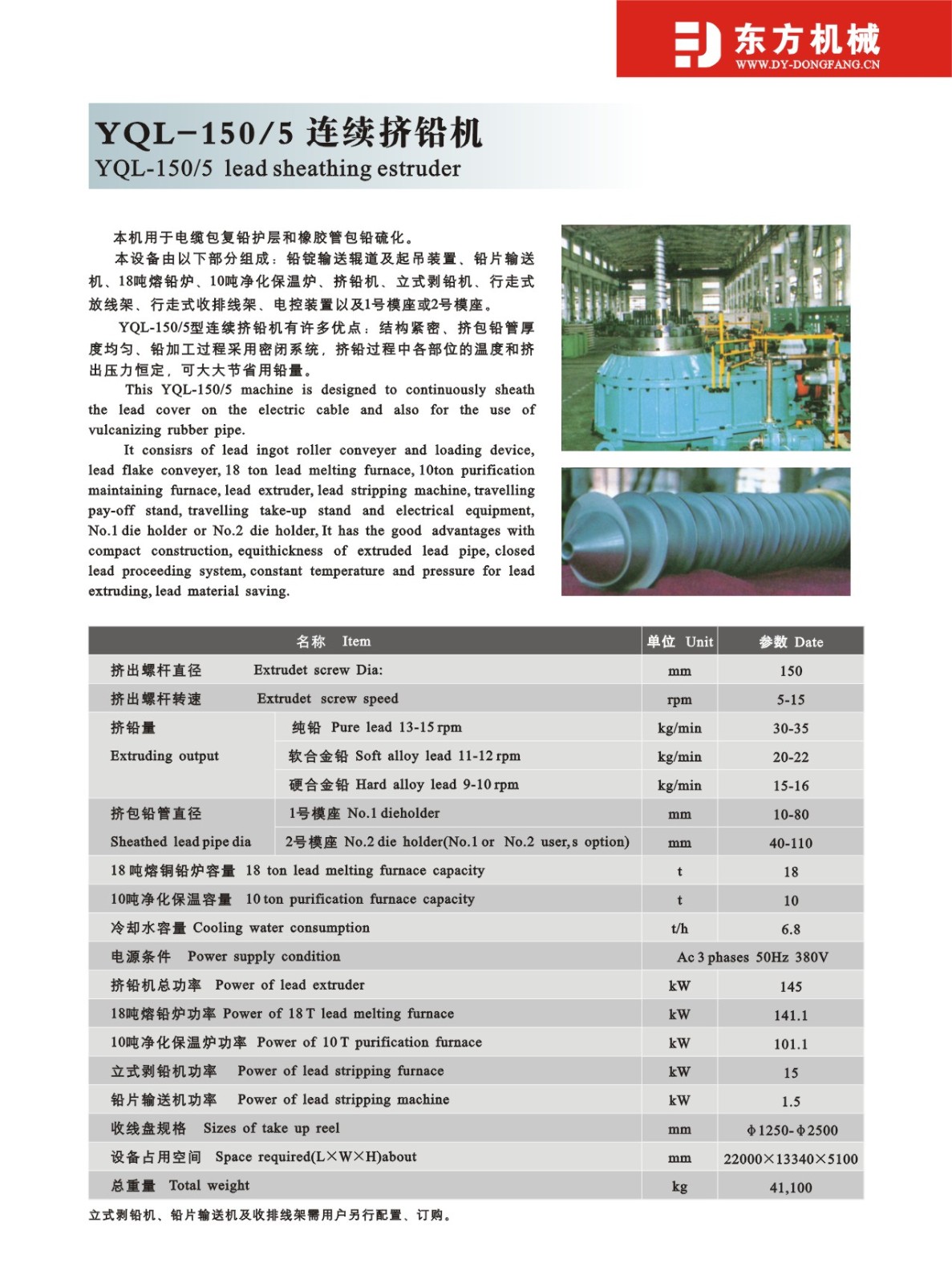

YQL-150/5連續擠鉛機
YQL-150/5 lead sheathing extruder

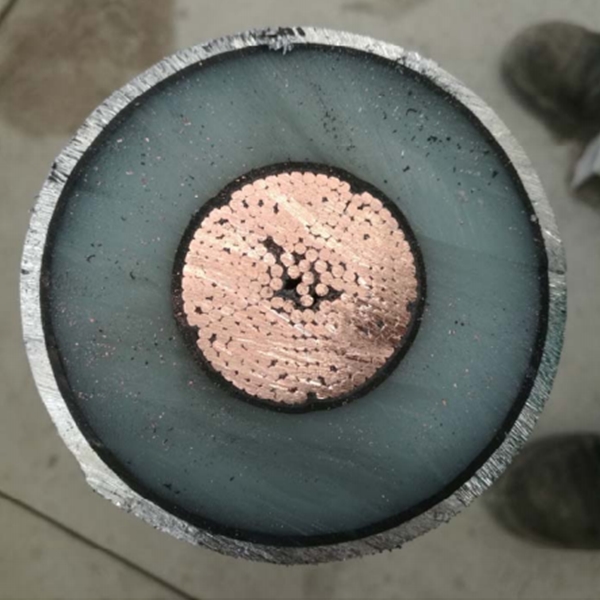

本機用于電纜包復鉛護層和橡膠管包鉛硫化。

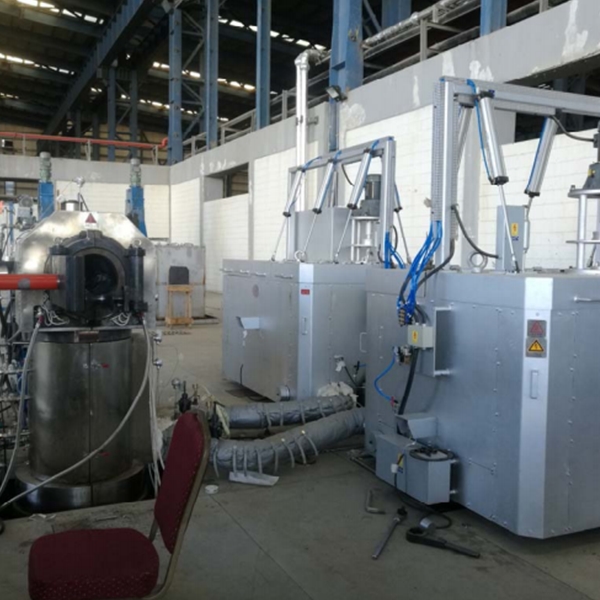

本設備由以下部分組成：鉛錠輸送輥道及起吊裝置、鉛片輸送機、18噸熔鉛爐、10噸凈化保溫爐、擠鉛機、立式剝鉛機、行走式放線架、行走式收排線架、電控裝置以及1號模座或2號模座。
YQL-150/5型連續擠鉛機有許多優點：結構緊密、擠包鉛管厚度均勻、鉛加工過程采用密閉系統，擠鉛過程中各部位的溫度和擠出壓力恒定，可大大節省用鉛量。
This YQL-150/5 machine is designed to continuously sheath the lead cover on the electric cable and also for the use of vulcanizing rubber pipe.
It consisrs of lead ingot roller conveyer and loading device, lead flake conveyer, 18 ton lead melting furnace,10 ton purification maintaining furnace, lead extruder, lead stripping machine, travelling pay-off stand, travelling take-up stand and electrical equipment, No.1 die holder or No.2 die holder, It has the good advantages with compact construction, equithickness of extruded lead pipe, closed lead proceeding system, constant temperature and pressure for lead extruding, lead material saving.
名稱Item | 單位Unit | 參數Date | |
擠出螺桿直徑Extrude screw Dia: | mm | 150 | |
擠出螺桿轉速Extrude screw speed | rpm | 5-15 | |
擠鉛量 Extruding output | 純鉛Pure lead 13-15rpm | kg/min | 30-35 |
軟合金鉛Soft alloy lead 11-12rpm | kg/min | 20-22 | |
硬合金鉛Hard alloy lead 9-10rpm | kg/min | 15-16 | |
擠包鉛管直徑 Sheathed lead pipe dia | 1號模座No.1 die holder | mm | 10-80 |
2號模座No.2 die holder | mm | 40-110 | |
18噸熔銅鉛爐容量18 ton lead melting furnace capacity | t | 18 | |
10噸凈化保溫容量10 ton purification furnace capacity | t | 10 | |
冷卻水容量Cooling water consumption | t/h | 6.8 | |
電源條件Power supply condition | Ac 3 phasea 50Hz 380v | ||
擠鉛機總功率Power of lead extruder | kw | 145 | |
18噸熔鉛爐功率Power of 18T lead melting furnace | kw | 141.1 | |
10噸凈化保溫爐功率Power of 10T purification furnace | kw | 101.1 | |
立式剝鉛機功率Power of lead stripping furnace | kw | 15 | |
鉛片輸送機功率Power of lead stripping machine | kw | 1.5 | |
收線盤規格Sizes of take up reel | mm | Φ1250-Φ2500 | |
設備占用空間Space required(L×W×H)about | mm | 22000×13340×5100 | |
總重量Total weight | kg | 41100 | |
